Description

Driven with perfection, Shri Vishnu Engineering designed Industrial Air Blower, Ideally used for fume extraction, dust collection, ventilation, hot air systems and air handling, the range is appreciated for its attributes such as perfect finish, excellent performance and energy efficiency. Our range is designed for all intents and purposes that produce constant speed machine which helps in delivering a constant volume of air.

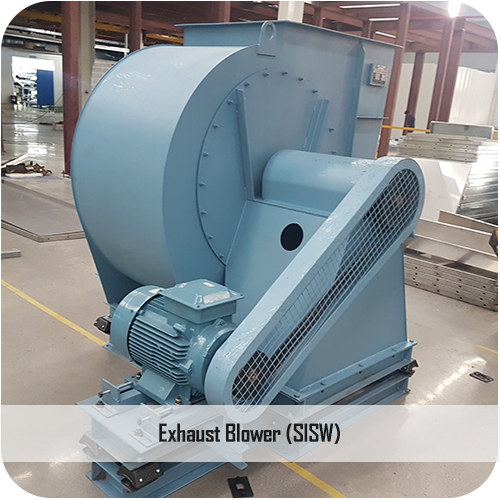

Centrifugal Exhaust Blower (SISW)

Range

• Volumetric flow capacity up to 40,000 m3 /hr
• Static Pressure Range of 114 mm WC
• Motor up to 30KW/40 HP
• Maximum operating temperature of 200°C
• Belt or direct drive
• Horizontal or vertical mounting
• Material Of Construction : Mild Steel, Stainless Steel
• Application : Spray booth evaporators and textile dust collectors, cooling zone,High temperature processes such as ovens, dryer

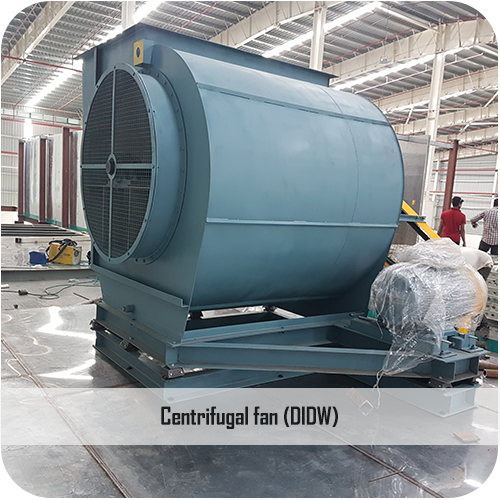

Centrifugal Fan (DIDW)

Range

• Air flow (capacity) range upto: 1,00,000m3 /hr.
• Static Pressure Range : 100 mm WC
• Motor up to 75 KW/100 HP
• Belt or direct drive
• Max Temperature: 30 Deg To 100 Deg
• Material Of Construction : Mild Steel, Stainless Steel
• Application : Air ventilationsystem,Dryer

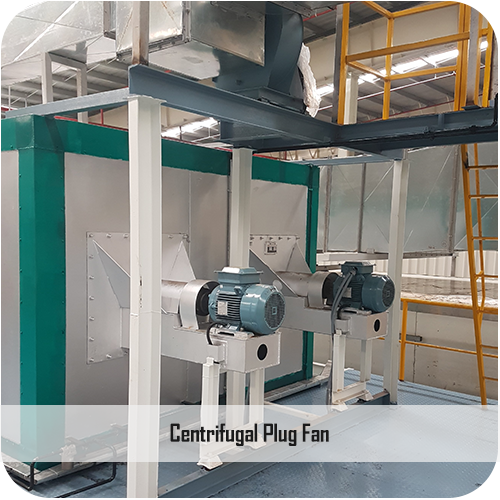

Centrifugal Plug Fan with Backward inclined

Range

• Capacity range upto: 23,000m3 /hr.
• Static Pressure Range : 50mm WC
• Motor up to 12.5KW/15 HP
• Direct drive
• Max Temperature: 350°C
• Material Of Construction : Mild Steel, Stainless Steel
• Application : Hot Air Circulation System (Heat Exchanger)
